Developing Accented: shadow DOM

, by Pavel Pomerantsev

This post goes into the details of how Accented uses shadow DOM to contain the styles and behaviors of its own UI elements, and how it detects accessibility issues inside shadow DOM in the host app.

This is the first post in a series about the development of Accented.

This post explores shadow DOM in Accented from two perspectives.

A note on vocabulary

The “host app” is the application that the user of Accented is developing.

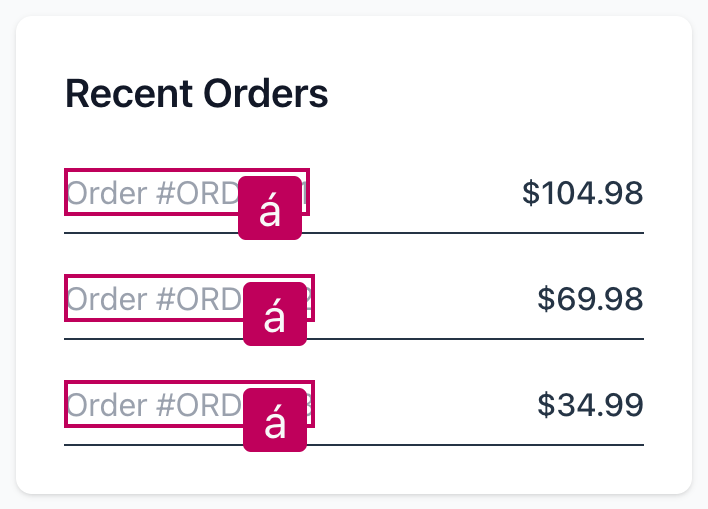

A screenshot of a 'Recent orders' block in a web application. There are three pieces of low-contrast text, which all have violet-red outlines, and large violet-red square buttons are aligned with the top right corners of those pieces of text.

In this image, most of the elements come from the host app, while the bright outlines and the square buttons with the letter “á” are coming from Accented.

Shadow DOM in Accented’s custom elements

For each accessibility issue on the page, Accented adds two custom elements (aka web components): accented-trigger and accented-dialog. Those represent the button that appears next to the element with the issue and the dialog that the button opens, respectively.

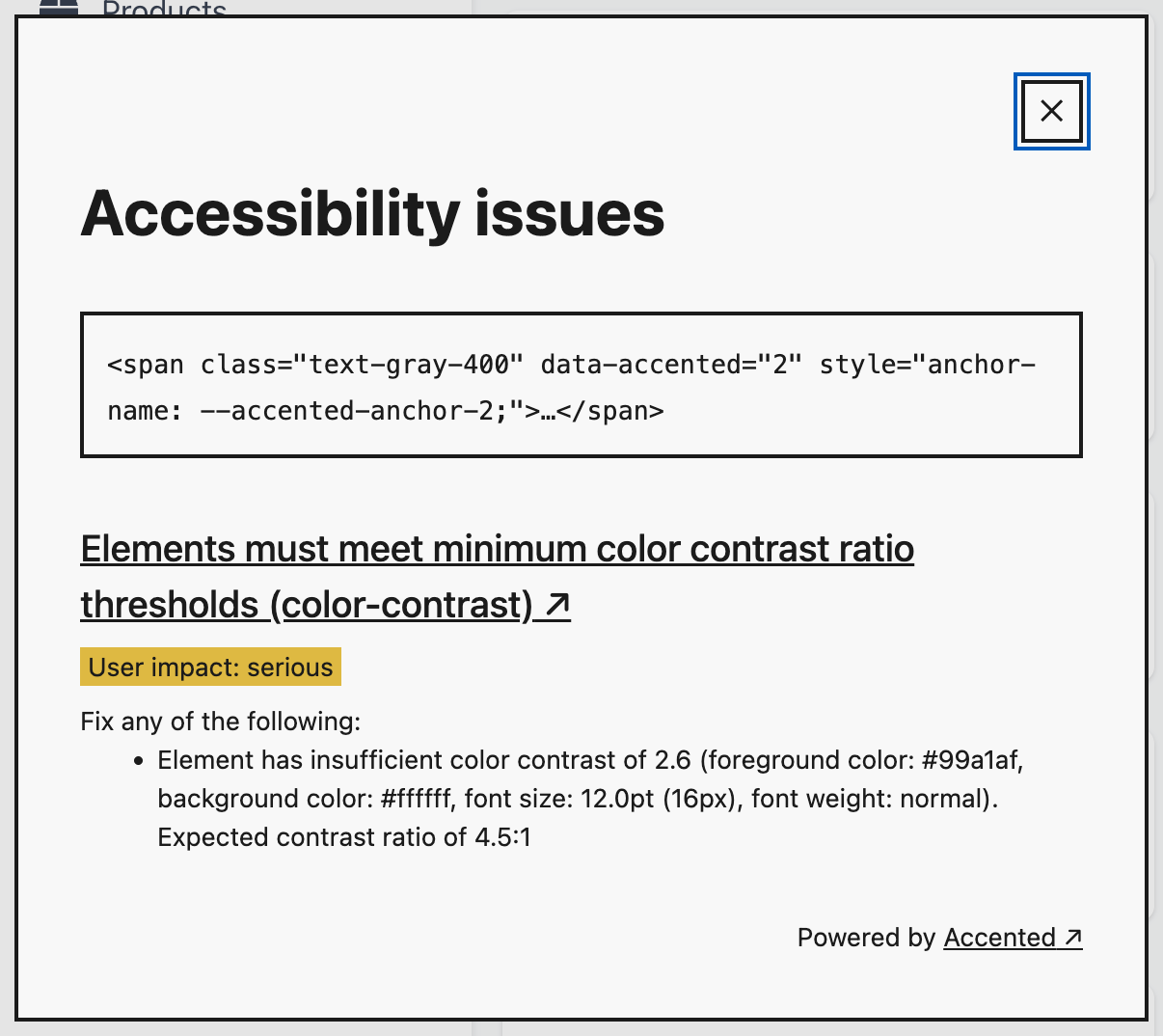

This is what the dialog may look like:

A screenshot of a dialog displaying accessibility issue information.

Here’s the challenge: Accented is supposed to work and look decent in any web app, regardless of what styles it might have, or what JS code may be running on the page.

That’s where shadow DOM comes in handy. If we use shadow DOM for Accented’s elements, the host app is much less likely to interfere with them. That’s exactly what we need — Accented should just work, without causing any additional headaches.

Attaching a shadow DOM to any element is simple, it just takes one line:

element.attachShadow({ mode: 'open' });

Shadow DOM is mostly used with custom elements, and within a custom element, the line usually becomes the following:

this.attachShadow({ mode: 'open' });

Here’s an example from accented-dialog.ts.

mode: 'open' creates an open shadow DOM, which can be accessed by the host app’s JavaScript. One could argue that we would want to completely prevent that and use mode: 'closed' instead: don’t we need to completely seal off our elements?

In practice, it’s unlikely to have any real benefits: as I said, the host app has to try really hard to get a reference to an element inside a shadow DOM by accident.

The closed shadow DOM would, however, make automated testing in Accented itself much harder: with Playwright (the framework that we use extensively for end-to-end testing), it’s not possible to interact with elements inside closed shadow DOM.

All in all, open shadow DOM is the right choice for Accented.

So how does this work from the user’s perspective? Let’s say the links in the host app are light gray on white. Accented will correctly flag that as a contrast issue, and its own dialog will keep its original, accessible color scheme, even if the specificity of the style in the host app is very high:

a {
  color: lightgray !important;
}

The reverse is also true: we don’t want Accented’s styles accidentally affecting the host app, so we put whatever styles Accented needs inside the shadow DOM, and they stay local to the accented-trigger and accented-dialog elements, not affecting the rest of the page in any way.

To continue with the links analogy, our links have a hover indicator that I’m happy with, but I don’t want every link in an app that uses Accented to get the same hover effect (which would inevitably raise questions from the developers of the app). Putting those styles inside the shadow DOM means that, again, no matter the specificity of the selector, they won’t leak out.

I could have something like this inside the shadow DOM:

a:hover {
  outline: 2px solid red !important;
}

That would still have zero effect on the links in the host app.

Here’s the actual code for the links and buttons inside Accented’s dialogs in case you’re curious.

Shadow DOM in host apps

An application that uses Accented in development may itself use shadow DOM. And just like in the light DOM, elements inside shadow DOM can have accessibility issues too.

Luckily, we can detect those with Accented (but only in open shadow DOM: closed shadow DOM is completely opaque for any scripts).

First of all, axe-core (the accessibility engine that Accented uses under the hood) scans open shadow DOM by default.

But in order for Accented to properly highlight issues in the shadow DOM, we need to take care of a few extra things.

Mutation observer

The central component of Accented is a mutation observer.

Unfortunately, there’s no native way to make it observe mutations inside the shadow DOM. There is a proposal to add a flag to the observe() options object that would enable the desired behavior, but it’s not implemented in any browser and it’s not even part of the spec yet.

In order for the mutation observer to detect changes inside shadow DOM, I extended the native mutation observer class and made it recursively observe all shadow roots (the “painful method” mentioned by Lea Verou in her proposal).

It’s ugly, but it works (at least, in most cases in my testing).

Global styles

Most of Accented’s CSS is for its custom elements, so those styles live in the shadow DOM of those elements.

We do, however, want to add outlines to the elements with issues, which are part of the host app, not Accented’s UI. Those styles must be added to the host app’s document.

With shadow DOM, this becomes slightly more complicated, as now we need to add the styles to each shadow root. And we can no longer do that just on Accented initialization: when an element with an issue is detected in shadow DOM, we need to check whether its shadow root has the required stylesheet, and add it if it doesn’t.

for (const rootNode of addedRootNodes) {
  rootNode.adoptedStyleSheets.push(stylesheet);
}

See full code.

Parent element

Accented sometimes needs to identify the parent of an element.

It’s trivial in the light DOM: it’s element.parentElement.

However, if an element is at the top of shadow DOM, parentElement returns null. In that case, the shadow host is what we’re interested in: element.getRootNode().host.

Now here’s the complete code for getting the “parent” of an element.

In closing

It’s been fun to work with (and around) shadow DOM when building Accented.

In upcoming posts, I’ll explore other aspects of Accented development — like anchor positioning and end-to-end testing with Playwright.
